Троичная карту в р
Я пытаюсь придумать способ построения тернарной тепловой карты с помощью R. Я думаю, что ggtern должен быть в состоянии выполнить трюк, но я не знаю, как сделать функцию binning, такую как stat_bin в vanilla ggplot2. Вот что у меня есть до сих пор:
require(ggplot2)
require(ggtern)
require(MASS)
require(scales)
palette <- c( "#FF9933", "#002C54", "#3375B2", "#CCDDEC", "#BFBFBF", "#000000")
sig <- matrix(c(1,2,3,4),2,2)
data <- data.frame(mvrnorm(n=10000, rep(2, 2), Sigma))
data$X1 <- data$X1/max(data$X1)
data$X2 <- data$X2/max(data$X2)
data$X1[which(data$X1<0)] <- runif(length(data$X1[which(data$X1<0)]))
data$X2[which(data$X2<0)] <- runif(length(data$X2[which(data$X2<0)]))
## Print 2d heatmap
ggplot(data, aes(x=X1, y=X2)) +
stat_bin2d(bins=50) +
scale_fill_gradient2(low=palette[4], mid=palette[3], high=palette[2]) +
xlab("Percentage x") +
ylab("Percentage y") +
scale_y_continuous(labels = percent) +
scale_x_continuous(labels = percent) +
theme_bw() + theme(text = element_text(size = 15))
data$X3 <- with(data, 1-X1-X2)
data <- data[data$X3 >= 0,]
## Print ternary heatmap
ggtern(data, aes(x=X1, y=X2, z=X3)) +
geom_point(color="black",size=1,shape=16) + theme_bw()

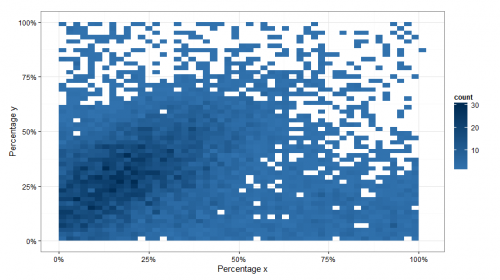

Первый вызов ggplot создает красивую 2d тепловую карту:

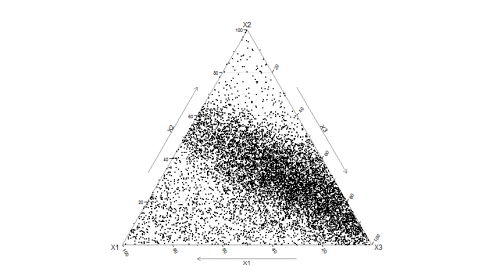

Второй график отображает точки в троичной системе координат.
Мне нужно что-то вроде stat_bin2d, чтобы получить количество точек в каждом треугольнике. В идеале я хочу установить размер треугольников, как я делаю в 2d, устанавливая переменную bins stat_bin2d.
1 ответ:
Хорошо, поэтому, поиграв с этим некоторое время, я придумал способ сделать это. Хотел бы услышать от вас, если есть умный способ сделать это.

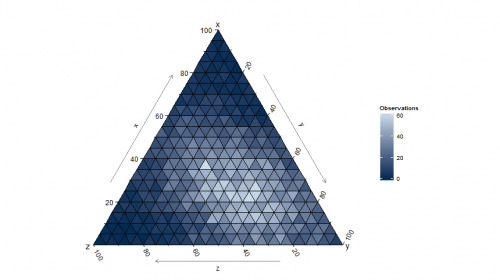

Код приведен ниже, вот сюжет, который я создал с его помощью:
require(ggplot2) require(ggtern) require(MASS) require(scales) require(plyr) palette <- c( "#FF9933", "#002C54", "#3375B2", "#CCDDEC", "#BFBFBF", "#000000") # Example data # sig <- matrix(c(3,0,0,2),2,2) # data <- data.frame(mvrnorm(n=10000, rep(2, 2), sig)) # data$X1 <- data$X1/max(data$X1) # data$X2 <- data$X2/max(data$X2) # data$X1[which(data$X1<0)] <- runif(length(data$X1[which(data$X1<0)])) # data$X2[which(data$X2<0)] <- runif(length(data$X2[which(data$X2<0)])) # Print 2d heatmap heatmap2d <- function(data) { p <- ggplot(data, aes(x=X1, y=X2)) + stat_bin2d(bins=50) + scale_fill_gradient2(low=palette[4], mid=palette[3], high=palette[2]) + xlab("Percentage x") + ylab("Percentage y") + scale_y_continuous(labels = percent) + scale_x_continuous(labels = percent) + theme_bw() + theme(text = element_text(size = 15)) print(p) } # Example data # data$X3 <- with(data, 1-X1-X2) # data <- data[data$X3 >= 0,] # Auxiliary function for heatmap3d count_bin <- function(data, minT, maxT, minR, maxR, minL, maxL) { ret <- data ret <- with(ret, ret[minT <= X1 & X1 < maxT,]) ret <- with(ret, ret[minL <= X2 & X2 < maxL,]) ret <- with(ret, ret[minR <= X3 & X3 < maxR,]) if(is.na(nrow(ret))) { ret <- 0 } else { ret <- nrow(ret) } ret } # Plot 3dimensional histogram in a triangle # See dataframe data for example of the input dataformat heatmap3d <- function(data, inc, logscale=FALSE, text=FALSE, plot_corner=TRUE) { # When plot_corner is FALSE, corner_cutoff determines where to stop plotting corner_cutoff = 1 # When plot_corner is FALSE, corner_number toggles display of obervations in the corners # This only has an effect when text==FALSE corner_numbers = TRUE count <- 1 points <- data.frame() for (z in seq(0,1,inc)) { x <- 1- z y <- 0 while (x>0) { points <- rbind(points, c(count, x, y, z)) x <- round(x - inc, digits=2) y <- round(y + inc, digits=2) count <- count + 1 } points <- rbind(points, c(count, x, y, z)) count <- count + 1 } colnames(points) = c("IDPoint","T","L","R") # base <- ggtern(data=points,aes(L,T,R)) + # theme_bw() + theme_hidetitles() + theme_hidearrows() + # geom_point(shape=21,size=10,color="blue",fill="white") + # geom_text(aes(label=IDPoint),color="blue") # print(base) polygons <- data.frame() c <- 1 # Normal triangles for (p in points$IDPoint) { if (is.element(p, points$IDPoint[points$T==0])) { next } else { pL <- points$L[points$IDPoint==p] pT <- points$T[points$IDPoint==p] pR <- points$R[points$IDPoint==p] polygons <- rbind(polygons, c(c,p), c(c,points$IDPoint[abs(points$L-pL) < inc/2 & abs(points$R-pR-inc) < inc/2]), c(c,points$IDPoint[abs(points$L-pL-inc) < inc/2 & abs(points$R-pR) < inc/2])) c <- c + 1 } } # Upside down triangles for (p in points$IDPoint) { if (!is.element(p, points$IDPoint[points$T==0])) { if (!is.element(p, points$IDPoint[points$L==0])) { pL <- points$L[points$IDPoint==p] pT <- points$T[points$IDPoint==p] pR <- points$R[points$IDPoint==p] polygons <- rbind(polygons, c(c,p), c(c,points$IDPoint[abs(points$T-pT) < inc/2 & abs(points$R-pR-inc) < inc/2]), c(c,points$IDPoint[abs(points$L-pL) < inc/2 & abs(points$R-pR-inc) < inc/2])) c <- c + 1 } } } # IMPORTANT FOR CORRECT ORDERING. polygons$PointOrder <- 1:nrow(polygons) colnames(polygons) = c("IDLabel","IDPoint","PointOrder") df.tr <- merge(polygons,points) Labs = ddply(df.tr,"IDLabel",function(x){c(c(mean(x$T),mean(x$L),mean(x$R)))}) colnames(Labs) = c("Label","T","L","R") # triangles <- ggtern(data=df.tr,aes(L,T,R)) + # geom_polygon(aes(group=IDLabel),color="black",alpha=0.25) + # geom_text(data=Labs,aes(label=Label),size=4,color="black") + # theme_bw() # print(triangles) bins <- ddply(df.tr, .(IDLabel), summarize, maxT=max(T), maxL=max(L), maxR=max(R), minT=min(T), minL=min(L), minR=min(R)) count <- ddply(bins, .(IDLabel), summarize, N=count_bin(data, minT, maxT, minR, maxR, minL, maxL)) df <- join(df.tr, count, by="IDLabel") Labs = ddply(df,.(IDLabel,N),function(x){c(c(mean(x$T),mean(x$L),mean(x$R)))}) colnames(Labs) = c("Label","N","T","L","R") if (plot_corner==FALSE){ corner <- ddply(df, .(IDPoint, IDLabel), summarize, maxperc=max(T,L,R)) corner <- corner$IDLabel[corner$maxperc>=corner_cutoff] df$N[is.element(df$IDLabel, corner)] <- 0 if (text==FALSE & corner_numbers==TRUE) { Labs$N[!is.element(Labs$Label, corner)] <- "" text=TRUE } } heat <- ggtern(data=df,aes(L,T,R)) + geom_polygon(aes(fill=N,group=IDLabel),color="black",alpha=1) if (logscale == TRUE) { heat <- heat + scale_fill_gradient(name="Observations", trans = "log", low=palette[2], high=palette[4]) } else { heat <- heat + scale_fill_gradient(name="Observations", low=palette[2], high=palette[4]) } heat <- heat + Tlab("x") + Rlab("y") + Llab("z") + theme_bw() + theme(axis.tern.arrowsep=unit(0.02,"npc"), #0.01npc away from ticks ticklength axis.tern.arrowstart=0.25,axis.tern.arrowfinish=0.75, axis.tern.text=element_text(size=12), axis.tern.arrow.text.T=element_text(vjust=-1), axis.tern.arrow.text.R=element_text(vjust=2), axis.tern.arrow.text.L=element_text(vjust=-1), axis.tern.arrow.text=element_text(size=12), axis.tern.title=element_text(size=15)) if (text==FALSE) { print(heat) } else { print(heat + geom_text(data=Labs,aes(label=N),size=3,color="white")) } } # Usage examples # heatmap3d(data, 0.2, text=TRUE) # heatmap3d(data, 0.05) # heatmap3d(data, 0.1, text=FALSE, logscale=TRUE) # heatmap3d(data, 0.1, text=TRUE, logscale=FALSE, plot_corner=FALSE) # heatmap3d(data, 0.1, text=FALSE, logscale=FALSE, plot_corner=FALSE)
