Двунаправленный A * не нахождение кратчайшего пути

Я реализую двунаправленный алгоритм A* в Python 2.7.12 и тестирую его на карте Румынии от Рассела и Норвига, Глава 3. Ребра имеют веса, и цель состоит в том, чтобы найти кратчайший путь между двумя узлами.

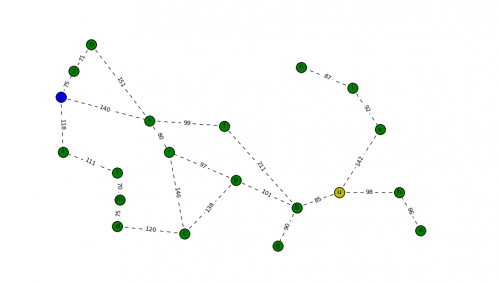

Вот визуализация графика тестирования:

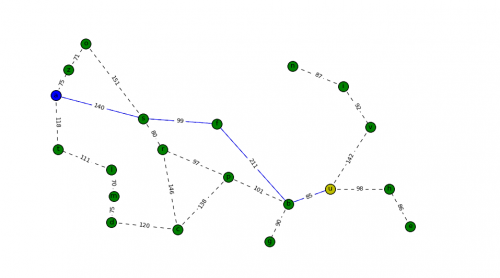

Пример, где мое двунаправленное A* терпит неудачу, - это то, где отправной точкой является 'a', а целью является 'u'. Это путь, который имеет моя реализация найдено: Длина ['a', 's', 'f', 'b', 'u'] равна 535.

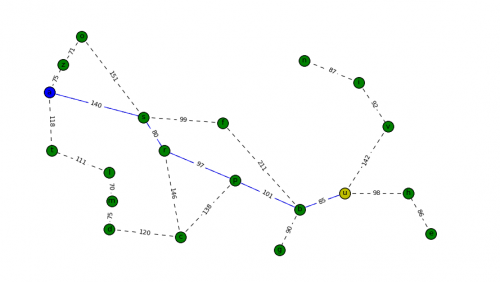

Это самый короткий путь от 'a' до 'u': Длина ['a', 's', 'r', 'p', 'b', 'u'] равна 503.

Как мы видим, моя реализация не смогла найти кратчайший путь. Я думаю, что проблема может быть в моих условиях остановки, но я не знаю.

Это скрипт python с моей реализацией A* (я использовал евклидово расстояние в качестве эвристики) и несколькими другими классами справки и функции:

from __future__ import division
import math
from networkx import *
import random
import pickle
import sys
import heapq
import matplotlib.pyplot as plt


class PriorityQueue():
    """Implementation of a priority queue"""
    def __init__(self):
        self.queue = []
        self.node_finder = dict()
        self.current = 0
        self.REMOVED_SYMBOL = '<removed>'

    def next(self):
        if self.current >=len(self.queue):
            self.current
            raise StopIteration

        out = self.queue[self.current]
        self.current += 1
        return out

    def pop(self):
        while self.queue:
            node = heapq.heappop(self.queue)
            nodeId = node[1]
            if nodeId is not self.REMOVED_SYMBOL:
                try:
                    del self.node_finder[nodeId]
                except KeyError:
                    dummy=1
                return node

    def remove(self, nodeId):
        node = self.node_finder[nodeId]
        node[1] = self.REMOVED_SYMBOL

    def __iter__(self):
        return self

    def __str__(self):
        return 'PQ:[%s]'%(', '.join([str(i) for i in self.queue]))

    def append(self, node):
        nodeId = node[1]
        nodePriority = node[0]
        node = [nodePriority, nodeId]
        self.node_finder[nodeId] = node
        heapq.heappush(self.queue, node)

    def update(self, node):
        nodeId = node[1]
        nodePriority = node[0]
        node = [nodePriority, nodeId]
        self.remove(nodeId)
        self.node_finder[nodeId] = node
        heapq.heappush(self.queue, node)

    def getPriority(self, nodeId):
        return self.node_finder[nodeId][0]

    def __contains__(self, key):
        self.current = 0
        return key in [n for v,n in self.queue]

    def __eq__(self, other):
        return self == other

    def size(self):
        return len(self.queue)

    def clear(self):
        self.queue = []

    def top(self):
        return self.queue[0]

    __next__ = next

def bidirectional_a_star(graph, start, goal):
    if start == goal:
        return []

    pq_s = PriorityQueue()
    pq_t = PriorityQueue()
    closed_s = dict()
    closed_t = dict()
    g_s = dict()
    g_t = dict()

    g_s[start] = 0
    g_t[goal] = 0

    cameFrom1 = dict()
    cameFrom2 = dict()

    def euclidean_distance(graph, v, goal):
        xv, yv = graph.node[v]['pos']
        xg, yg = graph.node[goal]['pos']
        return ((xv-xg)**2 + (yv-yg)**2)**0.5

    def h1(v): # heuristic for forward search (from start to goal)
        return euclidean_distance(graph, v, goal)

    def h2(v): # heuristic for backward search (from goal to start)
        return euclidean_distance(graph, v, start)

    cameFrom1[start] = False
    cameFrom2[goal] = False

    pq_s.append((0+h1(start), start))
    pq_t.append((0+h2(goal), goal))

    done = False
    i = 0

    mu = 10**301 # 10**301 plays the role of infinity
    connection = None

    while pq_s.size() > 0 and pq_t.size() > 0 and done == False:
        i = i + 1
        if i % 2 == 1: # alternate between forward and backward A*
            fu, u = pq_s.pop()
            closed_s[u] = True
            for v in graph[u]:
                weight = graph[u][v]['weight']
                if v in g_s:
                    if g_s[u] + weight < g_s[v]:
                        g_s[v] = g_s[u] + weight
                        cameFrom1[v] = u
                        if v in closed_s:
                            del closed_s[v]
                        if v in pq_s:
                            pq_s.update((g_s[v]+h1(v), v))
                        else:
                            pq_s.append((g_s[v]+h1(v), v))
                else:
                    g_s[v] = g_s[u] + weight
                    cameFrom1[v] = u
                    pq_s.append((g_s[v]+h1(v), v))
                if v in closed_t:
                    if g_s[u] + weight + g_t[v] < mu:
                        mu = g_s[u] + weight + g_t[v]
                        connection = v
                        done = True
        else:
            fu, u = pq_t.pop()
            closed_t[u] = True
            for v in graph[u]:
                weight = graph[u][v]['weight']
                if v in g_t:
                    if g_t[u] + weight < g_t[v]:
                        g_t[v] = g_t[u] + weight
                        cameFrom2[v] = u
                        if v in closed_t:
                            del closed_t[v]
                        if v in pq_t:
                            pq_t.update((g_t[v]+h2(v), v))
                        else:
                            pq_t.append((g_t[v]+h2(v), v))
                else:
                    g_t[v] = g_t[u] + weight
                    cameFrom2[v] = u
                    pq_t.append((g_t[v]+h2(v), v))
                if v in closed_s:
                    if g_t[u] + weight + g_s[v] < mu:
                        mu = g_t[u] + weight + g_s[v]
                        connection = v
                        done = True

        if u in closed_s and u in closed_t:
            if g_s[u] + g_t[u] < mu:
                mu = g_s[u] + g_t[u]
                connection = u
                stopping_distance = min(min([f for (f,x) in pq_s]), min([f for (f,x) in pq_t]))
                if mu <= stopping_distance:
                    done = True
                    #connection = u
                    continue

    if connection is None:
        # start and goal are not connected
        return None

    #print cameFrom1
    #print cameFrom2

    path = []
    current = connection
    #print current
    while current != False:
        #print predecessor
        path = [current] + path
        current = cameFrom1[current]

    current = connection
    successor = cameFrom2[current]
    while successor != False:
        path = path + [successor]
        current = successor
        successor = cameFrom2[current]

    return path


# This function visualizes paths
def draw_graph(graph, node_positions={}, start=None, goal=None, path=[]):

    explored = list(graph.get_explored_nodes())

    labels ={}
    for node in graph:
        labels[node]=node

    if not node_positions:
        node_positions = networkx.spring_layout(graph)

    edge_labels = networkx.get_edge_attributes(graph,'weight')

    networkx.draw_networkx_nodes(graph, node_positions)
    networkx.draw_networkx_edges(graph, node_positions, style='dashed')
    networkx.draw_networkx_edge_labels(graph, node_positions, edge_labels=edge_labels)
    networkx.draw_networkx_labels(graph,node_positions, labels)

    networkx.draw_networkx_nodes(graph, node_positions, nodelist=explored, node_color='g')

    if path:
        edges = [(path[i], path[i+1]) for i in range(0, len(path)-1)]
        networkx.draw_networkx_edges(graph, node_positions, edgelist=edges, edge_color='b')

    if start:
        networkx.draw_networkx_nodes(graph, node_positions, nodelist=[start], node_color='b')

    if goal:
        networkx.draw_networkx_nodes(graph, node_positions, nodelist=[goal], node_color='y')


    plt.plot()
    plt.show()

# this function calculates the length of the path
def calculate_length(graph, path):
    pairs = zip(path, path[1:])
    return sum([graph.get_edge_data(a, b)['weight'] for a, b in pairs])

#Romania map data from Russell and Norvig, Chapter 3.
romania = pickle.load(open('romania_graph.pickle', 'rb'))

node_positions = {n: romania.node[n]['pos'] for n in romania.node.keys()}

start = 'a'
goal = 'u'

path = bidirectional_a_star(romania, start, goal)
print "This is the path found by bidirectional A* :", path
print "Its length :", calculate_length(romania, path)
# visualize my path
draw_graph(romania, node_positions=node_positions, start=start, goal=goal, path=path)


# compare to the true shortest path between start and goal

true_path = networkx.shortest_path(romania, start, goal, weight='weight')
print "This is the actual shortest path: ", true_path
print "Its lenght: ", calculate_length(romania, true_path)
#visualize true_path
draw_graph(romania, node_positions=node_positions, start=start, goal=goal, path=true_path)

Данные Pickle для Румынии можно загрузить изздесь .
